I'm trying to improve the webserver performance activating nginx cache.

This is my simple config:

proxy_cache_path /var/cache/nginx levels=1:2 keys_zone=mycache:100m max_size=500m inactive=60m use_temp_path=off;

and

proxy_cache mycache;

inside my location directive

I'm facing this situation, checking logs I see plenty of MISS entries, my cache folder is not full (40MB), and most of these MISS entries are GET, don't have set-cookie or cache-control header.

I also added this config entry to check the cache status:

add_header X-Cache-Status $upstream_cache_status;

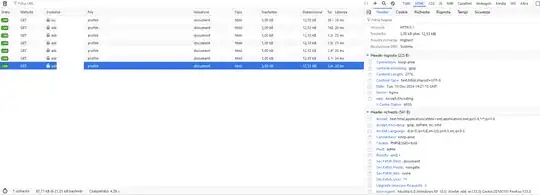

An this is an output of my browser:

enter image description here

I repeatedly loaded the same html page, the header doesn't have any cache control and as you can see the result is X-Cache-status is MISS.

This is the full config:

# configuration file /etc/nginx/nginx.conf:
user www-data;
worker_processes auto;
pid /run/nginx.pid;
include /etc/nginx/modules-enabled/*.conf;

events {
    worker_connections 768;
    # multi_accept on;
}


http {


##
# Basic Settings
##

sendfile on;
tcp_nopush on;
types_hash_max_size 2048;
server_tokens off;
client_max_body_size 100M;

# server_names_hash_bucket_size 64;
# server_name_in_redirect off;

include /etc/nginx/mime.types;
default_type application/octet-stream;

##
# SSL Settings
##

ssl_protocols TLSv1 TLSv1.1 TLSv1.2 TLSv1.3; # Dropping SSLv3, ref: POODLE
ssl_prefer_server_ciphers on;

##
# Logging Settings
##

log_format cache_st '$remote_addr - $upstream_cache_status [$time_local] "$request" $status $body_bytes_sent "$http_referer" "$http_user_agent"';
access_log /var/log/nginx/access.log cache_st;
error_log /var/log/nginx/error.log;

##
# Gzip Settings
##

gzip on;

# gzip_vary on;
# gzip_proxied any;
# gzip_comp_level 6;
# gzip_buffers 16 8k;
# gzip_http_version 1.1;
# gzip_types text/plain text/css application/json application/javascript text/xml application/xml application/xml+rss text/javascript;

#
## Cache
#

proxy_cache_path /var/cache/nginx levels=1:2 keys_zone=mycache:100m max_size=500m inactive=60m use_temp_path=off;


##
# Virtual Host Configs
##

include /etc/nginx/conf.d/*.conf;
include /etc/nginx/sites-enabled/*;



}


#mail {


# See sample authentication script at:


# http://wiki.nginx.org/ImapAuthenticateWithApachePhpScript




# auth_http localhost/auth.php;


# pop3_capabilities "TOP" "USER";


# imap_capabilities "IMAP4rev1" "UIDPLUS";




server {


listen     localhost:110;


protocol   pop3;


proxy      on;


}




server {


listen     localhost:143;


protocol   imap;


proxy      on;


}


#}


configuration file /etc/nginx/modules-enabled/50-mod-http-auth-pam.conf:


load_module modules/ngx_http_auth_pam_module.so;


configuration file /etc/nginx/modules-enabled/50-mod-http-cache-purge.conf:


load_module modules/ngx_http_cache_purge_module.so;


configuration file /etc/nginx/modules-enabled/50-mod-http-dav-ext.conf:


load_module modules/ngx_http_dav_ext_module.so;


configuration file /etc/nginx/modules-enabled/50-mod-http-echo.conf:


load_module modules/ngx_http_echo_module.so;


configuration file /etc/nginx/modules-enabled/50-mod-http-fancyindex.conf:


load_module modules/ngx_http_fancyindex_module.so;


configuration file /etc/nginx/modules-enabled/50-mod-http-geoip.conf:


load_module modules/ngx_http_geoip_module.so;


configuration file /etc/nginx/modules-enabled/50-mod-http-geoip2.conf:


load_module modules/ngx_http_geoip2_module.so;


configuration file /etc/nginx/modules-enabled/50-mod-http-headers-more-filter.conf:


load_module modules/ngx_http_headers_more_filter_module.so;


configuration file /etc/nginx/modules-enabled/50-mod-http-image-filter.conf:


load_module modules/ngx_http_image_filter_module.so;


configuration file /etc/nginx/modules-enabled/50-mod-http-perl.conf:


load_module modules/ngx_http_perl_module.so;


configuration file /etc/nginx/modules-enabled/50-mod-http-subs-filter.conf:


load_module modules/ngx_http_subs_filter_module.so;


configuration file /etc/nginx/modules-enabled/50-mod-http-uploadprogress.conf:


load_module modules/ngx_http_uploadprogress_module.so;


configuration file /etc/nginx/modules-enabled/50-mod-http-upstream-fair.conf:


load_module modules/ngx_http_upstream_fair_module.so;


configuration file /etc/nginx/modules-enabled/50-mod-http-xslt-filter.conf:


load_module modules/ngx_http_xslt_filter_module.so;


configuration file /etc/nginx/modules-enabled/50-mod-mail.conf:


load_module modules/ngx_mail_module.so;


configuration file /etc/nginx/modules-enabled/50-mod-nchan.conf:


load_module modules/ngx_nchan_module.so;


configuration file /etc/nginx/modules-enabled/50-mod-stream.conf:


load_module modules/ngx_stream_module.so;


configuration file /etc/nginx/modules-enabled/70-mod-stream-geoip.conf:


load_module modules/ngx_stream_geoip_module.so;


configuration file /etc/nginx/modules-enabled/70-mod-stream-geoip2.conf:


load_module modules/ngx_stream_geoip2_module.so;


configuration file /etc/nginx/mime.types:


types {
    text/html                             html htm shtml;
    text/css                              css;
    text/xml                              xml;
    image/gif                             gif;
    image/jpeg                            jpeg jpg;
    application/javascript                js;
    application/atom+xml                  atom;
    application/rss+xml                   rss;


text/mathml                           mml;
text/plain                            txt;
text/vnd.sun.j2me.app-descriptor      jad;
text/vnd.wap.wml                      wml;
text/x-component                      htc;

image/png                             png;
image/tiff                            tif tiff;
image/vnd.wap.wbmp                    wbmp;
image/x-icon                          ico;
image/x-jng                           jng;
image/x-ms-bmp                        bmp;
image/svg+xml                         svg svgz;
image/webp                            webp;

application/font-woff                 woff;
application/java-archive              jar war ear;
application/json                      json;
application/mac-binhex40              hqx;
application/msword                    doc;
application/pdf                       pdf;
application/postscript                ps eps ai;
application/rtf                       rtf;
application/vnd.apple.mpegurl         m3u8;
application/vnd.ms-excel              xls;
application/vnd.ms-fontobject         eot;
application/vnd.ms-powerpoint         ppt;
application/vnd.wap.wmlc              wmlc;
application/vnd.google-earth.kml+xml  kml;
application/vnd.google-earth.kmz      kmz;
application/x-7z-compressed           7z;
application/x-cocoa                   cco;
application/x-java-archive-diff       jardiff;
application/x-java-jnlp-file          jnlp;
application/x-makeself                run;
application/x-perl                    pl pm;
application/x-pilot                   prc pdb;
application/x-rar-compressed          rar;
application/x-redhat-package-manager  rpm;
application/x-sea                     sea;
application/x-shockwave-flash         swf;
application/x-stuffit                 sit;
application/x-tcl                     tcl tk;
application/x-x509-ca-cert            der pem crt;
application/x-xpinstall               xpi;
application/xhtml+xml                 xhtml;
application/xspf+xml                  xspf;
application/zip                       zip;

application/octet-stream              bin exe dll;
application/octet-stream              deb;
application/octet-stream              dmg;
application/octet-stream              iso img;
application/octet-stream              msi msp msm;

application/vnd.openxmlformats-officedocument.wordprocessingml.document    docx;
application/vnd.openxmlformats-officedocument.spreadsheetml.sheet          xlsx;
application/vnd.openxmlformats-officedocument.presentationml.presentation  pptx;

audio/midi                            mid midi kar;
audio/mpeg                            mp3;
audio/ogg                             ogg;
audio/x-m4a                           m4a;
audio/x-realaudio                     ra;

video/3gpp                            3gpp 3gp;
video/mp2t                            ts;
video/mp4                             mp4;
video/mpeg                            mpeg mpg;
video/quicktime                       mov;
video/webm                            webm;
video/x-flv                           flv;
video/x-m4v                           m4v;
video/x-mng                           mng;
video/x-ms-asf                        asx asf;
video/x-ms-wmv                        wmv;
video/x-msvideo                       avi;



}


configuration file /etc/nginx/sites-enabled/010-mysiteb:


HTTP


server {
        server_name mysite2 mysiteb mysite3 mysiteb;
    listen 80;

    include commons/http-location.inc;
}


BALANCED HAPROXY2 - TCP 81


server {
        server_name mysiteb;
    listen 443 ssl;
    ssl_certificate /etc/letsencrypt/live/mysiteb/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/mysiteb/privkey.pem;
    include commons/ha-location-2.inc;
}


BALANCED HAPROXY WEB - TCP 82


server {
        server_name mysite3 mysiteb;
    listen 443 ssl;
        ssl_certificate /etc/letsencrypt/live/mysite3/fullchain.pem;
        ssl_certificate_key /etc/letsencrypt/live/mysite3/privkey.pem;
        include commons/ha-location-web.inc;
}


server {
        server_name mysite2;
        listen 443 ssl;
        ssl_certificate /etc/letsencrypt/live/mysite2/fullchain.pem;
        ssl_certificate_key /etc/letsencrypt/live/mysite2/privkey.pem;
        include commons/ha-location-web.inc;
}


configuration file /etc/nginx/commons/http-location.inc:


    location /.well-known {
            alias /var/www/html/.well-known;
    }
    location / {
            return 301 https://$host$request_uri;
    }




configuration file /etc/nginx/commons/ha-location-2.inc:


    location / {
            proxy_pass http://127.0.0.1:81;
            proxy_set_header Host $host;
            proxy_set_header X-Forwarded-For $remote_addr;
            proxy_set_header X-Forwarded-Host $http_host;
            proxy_set_header X-Forwarded-SSL on;
    proxy_set_header X-Forwarded-Proto https;
            error_page 502 /502error.html;
    }
    location /ws {
            proxy_pass http://127.0.0.1:81;
            proxy_http_version 1.1;
            proxy_set_header Upgrade $http_upgrade;
            proxy_set_header Connection "Upgrade";
            proxy_set_header Host $host;
            proxy_set_header X-Forwarded-For $remote_addr;
            proxy_set_header X-Forwarded-Host $http_host;
            proxy_set_header X-Forwarded-SSL on;
    proxy_set_header X-Forwarded-Proto https;
            proxy_read_timeout 120;
    }
    location = /502error.html {
            root   /usr/share/nginx/html;
            internal;
    }




configuration file /etc/nginx/commons/ha-location-web.inc:


    location / {
            proxy_pass http://127.0.0.1:82;
            proxy_set_header Host $host;
            proxy_set_header X-Forwarded-For $remote_addr;
            proxy_set_header X-Forwarded-Host $http_host;
            proxy_set_header X-Forwarded-SSL on;
    proxy_set_header X-Forwarded-Proto https;
            error_page 502 /502error.html;
    proxy_cache mycache;
    add_header X-Cache-Status $upstream_cache_status;
    }
    location = /502error.html {
            root   /usr/share/nginx/html;
            internal;
    }




configuration file /etc/nginx/commons/srvap1-location.inc:


    location / {
            proxy_pass http://srvap1/;
            proxy_set_header Host $host;
            proxy_set_header X-Forwarded-For $remote_addr;
            proxy_set_header X-Forwarded-Host $http_host;
            proxy_set_header X-Forwarded-SSL on;
    proxy_set_header X-Forwarded-Proto https;
            error_page 502 /502error.html;
    }
    location /ws {
            proxy_pass http://srvap1;
            proxy_http_version 1.1;
            proxy_set_header Upgrade $http_upgrade;
            proxy_set_header Connection "Upgrade";
            proxy_set_header Host $host;
            proxy_set_header X-Forwarded-For $remote_addr;
            proxy_set_header X-Forwarded-Host $http_host;
            proxy_set_header X-Forwarded-SSL on;
    proxy_set_header X-Forwarded-Proto https;
            proxy_read_timeout 120;
    }
    location = /502error.html {
            root   /usr/share/nginx/html;
            internal;
    }




configuration file /etc/nginx/commons/srvap2-location.inc:


    location / {
            proxy_pass http://srvap2/;
            proxy_set_header Host $host;
            proxy_set_header X-Forwarded-For $remote_addr;
            proxy_set_header X-Forwarded-Host $http_host;
            proxy_set_header X-Forwarded-SSL on;
    proxy_set_header X-Forwarded-Proto https;
            error_page 502 /502error.html;
    }
    location /ws {
            proxy_pass http://srvap2;
            proxy_http_version 1.1;
            proxy_set_header Upgrade $http_upgrade;
            proxy_set_header Connection "Upgrade";
            proxy_set_header Host $host;
            proxy_set_header X-Forwarded-For $remote_addr;
            proxy_set_header X-Forwarded-Host $http_host;
            proxy_set_header X-Forwarded-SSL on;
    proxy_set_header X-Forwarded-Proto https;
            proxy_read_timeout 120;
    }
    location = /502error.html {
            root   /usr/share/nginx/html;
            internal;
    }




configuration file /etc/nginx/sites-enabled/030-mysitea:


HTTP


server {
        server_name mysite1 mysite4 mysite5;
    listen 80;

    include commons/http-location.inc;
}


BALANCED HAPROXY - TCP 81


server {
        server_name mysite4;
    listen 443 ssl;
    ssl_certificate /etc/letsencrypt/live/mysite4/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/mysite4/privkey.pem;
    include commons/ha-location-2.inc;
}


server {
        server_name mysite5 mysitea;
    listen 443 ssl;
        ssl_certificate /etc/letsencrypt/live/mysite5/fullchain.pem;
        ssl_certificate_key /etc/letsencrypt/live/mysite5/privkey.pem;
        include commons/ha-location-web.inc;
}


server {
        server_name mysite1;
        listen 443 ssl;
        ssl_certificate /etc/letsencrypt/live/mysite1/fullchain.pem;
        ssl_certificate_key /etc/letsencrypt/live/mysite1/privkey.pem;
        include commons/ha-location-web.inc;
}


AP1 - TCP 10001


server {
        server_name mysite4;
        listen 10001 ssl;
        ssl_certificate /etc/letsencrypt/live/mysite4/fullchain.pem;
        ssl_certificate_key /etc/letsencrypt/live/mysite4/privkey.pem;
    include commons/srvap1-location.inc;
}


server {
        server_name mysite5 mysitea;
        listen 10001 ssl;
        ssl_certificate /etc/letsencrypt/live/mysite5/fullchain.pem;
        ssl_certificate_key /etc/letsencrypt/live/mysite5/privkey.pem;
        include commons/srvap1-location.inc;
}


server {
        server_name mysite1;
        listen 10001 ssl;
        ssl_certificate /etc/letsencrypt/live/mysite1/fullchain.pem;
        ssl_certificate_key /etc/letsencrypt/live/mysite1/privkey.pem;
        include commons/srvap1-location.inc;
}


AP2 - TCP 10002


server {
        server_name mysite4;
        listen 10002 ssl;
        ssl_certificate /etc/letsencrypt/live/mysite4/fullchain.pem;
        ssl_certificate_key /etc/letsencrypt/live/mysite4/privkey.pem;
        include commons/srvap2-location.inc;
}


server {
        server_name mysite5 mysitea;
        listen 10002 ssl;
        ssl_certificate /etc/letsencrypt/live/mysite5/fullchain.pem;
        ssl_certificate_key /etc/letsencrypt/live/mysite5/privkey.pem;
        include commons/srvap2-location.inc;
}


server {
        server_name mysite1;
        listen 10002 ssl;
        ssl_certificate /etc/letsencrypt/live/mysite1/fullchain.pem;
        ssl_certificate_key /etc/letsencrypt/live/mysite1/privkey.pem;
        include commons/srvap2-location.inc;
}


configuration file /etc/nginx/sites-enabled/default:




You should look at the following URL's in order to grasp a solid understanding


of Nginx configuration files in order to fully unleash the power of Nginx.


https://www.nginx.com/resources/wiki/start/


https://www.nginx.com/resources/wiki/start/topics/tutorials/config_pitfalls/


https://wiki.debian.org/Nginx/DirectoryStructure




In most cases, administrators will remove this file from sites-enabled/ and


leave it as reference inside of sites-available where it will continue to be


updated by the nginx packaging team.




This file will automatically load configuration files provided by other


applications, such as Drupal or Wordpress. These applications will be made


available underneath a path with that package name, such as /drupal8.




Please see /usr/share/doc/nginx-doc/examples/ for more detailed examples.




Default server configuration




server {
    listen 80 default_server;
    listen [::]:80 default_server;


# SSL configuration
#
# listen 443 ssl default_server;
# listen [::]:443 ssl default_server;
#
# Note: You should disable gzip for SSL traffic.
# See: https://bugs.debian.org/773332
#
# Read up on ssl_ciphers to ensure a secure configuration.
# See: https://bugs.debian.org/765782
#
# Self signed certs generated by the ssl-cert package
# Don't use them in a production server!
#
# include snippets/snakeoil.conf;

root /var/www/html;

# Add index.php to the list if you are using PHP
index index.html index.htm index.nginx-debian.html;

server_name _;

location / {
    # First attempt to serve request as file, then
    # as directory, then fall back to displaying a 404.
    try_files $uri $uri/ =404;
}




}
server {


listen 127.0.0.1:1935;

root /var/www/html;

location / {
    stub_status;
}




}
Tobia
  • 1,426

1 Answers1

1

I'm seeing a mistakes, the proxy_cache_valid directive is required but not set by you, here is the doc refrence.

Also here is one of my own cache config which work perfectly and might help you too:

    {
    ...
    proxy_cache XXX_YOUR_CACHE_NAME_XXX;
    proxy_cache_valid 200 10m; # time of cache and accepeted status code for caching
    proxy_cache_methods GET HEAD;
    proxy_cache_use_stale error timeout updating http_500 http_503;
    proxy_cache_background_update on; # read more on this in the doc
    proxy_cache_min_uses 1; # its the default in case you want to change
    proxy_ignore_headers Expires Set-Cookie Cache-Control Vary; # some hard rules for not bypassing the cache(you may not want this)
    proxy_cache_lock on; # read more on this in the doc
    add_header X-proxy-Cache $upstream_cache_status;
}
erfan
  • 21
