We just received a new Cisco Catalyst 2960, and in the box came an item we've never seen before. Interestingly enough, the documentation shows an image of the object, but it is not listed anywhere else in the guide (including the legend, which is numbered incorrectly)!

My buddies and I think it's some type of cable management device. Can anyone identify and elaborate as to its proper use?

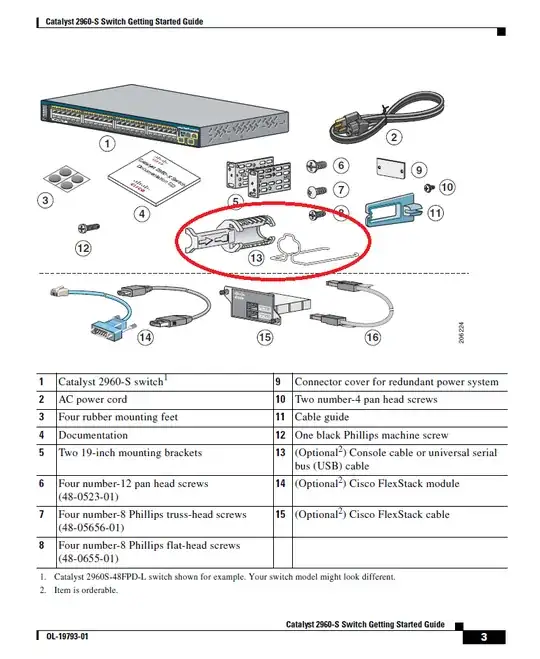

Here is an image from the getting started guide (with the object circled):

enter image description here

newmanth
  • 3,953

2 Answers2

23

It's part of the power cable assembly. It serves two functions:

  1. Mechanically hold the power cable in so it can not be accidentally pulled
  2. Stress relief on the power plug itself, so the weight of the cable doesn't either loosen the connection or cause a short

I've seen this as standard equipment in all Juniper EX series switches, but the first time I've seen it on a Cisco. Also easier to install than a lot of other supports, since the support body screws on around the power cable.

Scott Pack
  • 15,097
19

Looks like parts to hold the power cable into the switch.
