I have a Supermicro IPMI and I read you can use dmidecode to determine which one it is. But all I get for the info is:

Handle 0x0001, DMI type 1, 27 bytes
System Information
    Manufacturer: Supermicro
    Product Name: X9SCL/X9SCM
    Version: 0123456789
    Serial Number: 0123456789
    UUID: *
    Wake-up Type: Power Switch
    SKU Number: To be filled by O.E.M.
    Family: To be filled by O.E.M.

Sadly this leaves me with multiple possible choices on the supermicro site. Any chance to determine the exact one I have installed?

Doridian
  • 341

8 Answers8

9

There are two ways to do this:

  1. It is possible to a programatically view information about the BMC in your machine. However, in my experience the tools don't provide useful information.

I tried ipmitool bmc info and it returns some information. From here, you'd need a way to map the ID numbers to something which humans can understand:

Manufacturer ID           : 47488
Manufacturer Name         : Unknown (0xB980)
Product ID                : 43707 (0xaabb)
Product Name              : Unknown (0xAABB)

Googling for 47488 & 43707 does yield some hints as to the manufacturer of this card, but that's not very helpful.

  1. Manually. Sadly, this is what most admins end up doing.

Find out your motherboard number, and search the following pages, and use your investigating skills to determine which BMC is yours.

Stefan Lasiewski
  • 24,361
  • 42
  • 136
  • 188
3

I was able to find it right in the boot log/dmesg.

enter image description here

Then simply look for that hardware name on the supermicro firmware page!

Paul C
  • 187
2

From dmidecode:

IPMI Device Information

Interface Type: KCS (Keyboard Control Style)

Specification Version: 2.0

I2C Slave Address: 0x00

NV Storage Device: Not Present

Base Address: 0x0000000000000CA2 (I/O)

Register Spacing: Successive Byte Boundaries

Did you grep dmidecode for "IPMI"?

egorgry
  • 2,911
2

The original question wanted to know how to ask IPMI what the motherboard model is... not disturbing the installed/running OS at all.

Their new "SMCIPMITool.jar" shows motherboard model in the commandline once you've connected to one with it:

./jre/bin/java -jar SMCIPMITool.jar 172.22.16.210 ADMIN ADMIN shell
SMC IPMI Tool V2.15.0(Build 160122) - Super Micro Computer, Inc.
Press Ctrl+D or "exit" to exit
Press "?" or "help" for help
Press TAB for command completion
Press UP and DOWN key for command history
Trap Receiver Started
172.22.16.210 X9SCD (S0/G0,46w) 22:38 SIM(WA)>exit
bye

See, without any prior knowledge it shows me it's a X9SCD and I'm done. No need to even look at the console, or disturb whatever horrible OS the client is running (windows...)

Furthermore, the X9SCL/X9SCM are the same IPMI anyway (they list separately, but the files are identical). There are only about 4 different types of BMC used across all boards. Also flashing via web interface, it will check compatibility and complain if you have the wrong firmware.

Also on the prompt line, the actual BMC model at the end (X9SCD uses the "SIM-WA" type...)

Tony Butler
  • 131
1

Just thought I'd through another, perhaps easier answer into the pot, especially if you're running Windows. You can use Supermicro's IPMIView application to connect to the server in question and on the "Users" tab (no idea why it's there) it providers the motherboard model and also the system/chassis SKU too (if applicable).

IPMIView screenshot

You can download IPMIview here: https://www.supermicro.com/wftp/utility/IPMIView/

willdashwood
  • 113
  • 1
  • 1
  • 6
1

You can get the unit version in BIOS in the Main tab (keep pressing DEL while booting to get there). Also the current IPMI version can be found in IPMI tab.

Ikar Pohorský
  • 413
1

The solution I found required me to:

IPMICFG_1.26.0_20161227/Linux/64bit/IPMICFG-Linux.x86_64 -fru list

Board Mfg. Date/Time(BDT)       = 1996/01/01 00:00:00 (00 00 00)
Board Manufacturer (BM)         = Supermicro
Board Product Name (BPN)        =
Board Serial number (BS)        =
Board Part number (BP)          =
Product Manufacturer (PM)       =
Product Name (PN)               =
Product Part/Model number (PPM) =
Product Version (PV)            =
Product Serial number (PS)      =
Product Asset Tag (PAT)         =

Which unhelpfully still didn't show the product name. However, reading through the options suggested this potentially useful item:

"-fru 2p Update Board-Product Name from DMITable to IPMI FRU."

Result from running: ./IPMICFG-Linux.x86_64 -fru 2p

Board Mfg. Date/Time(BDT)       = 1996/01/01 00:00:00 (00 00 00)
Board Manufacturer (BM)         = Supermicro
Board Product Name (BPN)        = X10DRi
Board Serial number (BS)        =
Board Part number (BP)          =
Product Manufacturer (PM)       =
Product Name (PN)               =
Product Part/Model number (PPM) =
Product Version (PV)            =
Product Serial number (PS)      =
Product Asset Tag (PAT)         =

There are various other -fru items that would appear to further populate the list.

Karl Dane
  • 11
0

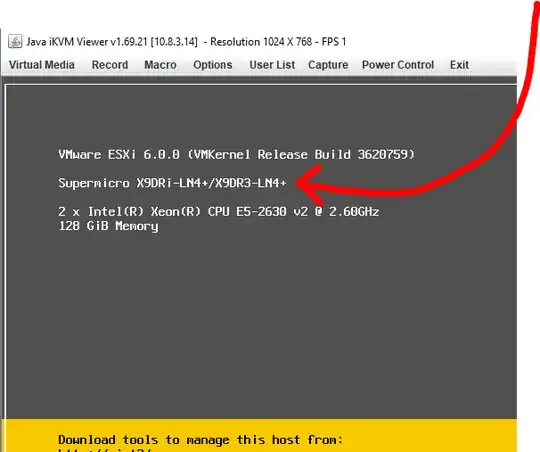

VMware displays the server model on the login screen enter image description here
