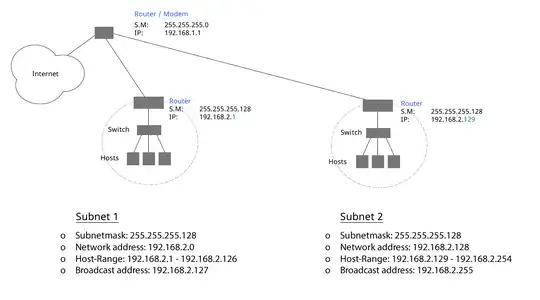

I'm planning my first network with 2 subnets and came up with the following schema:

enter image description here

I'd like to know...

  • Would this work?
  • Did I use the right amount of routers?
  • Did I configure everything correctly?
  • Plus, do I need to configure static routing here, so that every host within the subnets has internet access?
Pierre.Vriens
  • 1,153
Johnson
  • 1

1 Answers1

0

I'd like to know...

Would this work?

Yes

Did I use the right amount of routers?

Subjective, as you could do the same thing with a single router

Did I configure everything correctly?

Again a little subjective, if you could explain why you are splitting them like this it would help more.

Plus, do I need to configure static routing here, so that every host within the subnets has internet access?

Depending on the router it might need a static route or just a gateway defined. Do you want to access anything between the subnets, because then you will need static routes.

Drifter104
  • 3,883
