CloudFlare SSL redirection loops

Question

We have installed on one server a regular web-site (http://example.com) and web-mail (https://example.com/mail), Debian, Joomla, NGINX, iRedMail.

For protection from DDoS we use CloudFlare in free variant.

So the problem is: when CF is turned off everything is OK - site and web-mail is accessible. But when turning on CF-protection - site is OK, but web-mail says "too many redirects" in SSL.

Tried to set up as described here - nothing changes.

Seems like some misconfiguration in redirection rules in CF rules, or ngnix - can't understand. But where?

/etc/nginx/sites-enabled/example.com (web-site):

server {
    listen 80;
    server_name example.com;
    server_name_in_redirect off;

    root /var/www/example.com;
    index index.php index.html index.htm default.html default.htm;

    location / {
        try_files $uri $uri/ /index.php?$args;.
   }

    location ~* /(images|cache|media|logs|tmp)/.*\.(php|pl|py|jsp|asp|sh|cgi)$ {
        return 403;
        error_page 403 /403_error.html;
    }

    location ~* \.(ico|pdf|flv)$ {
        expires 1y;
    }

    location ~* \.(js|css|png|jpg|jpeg|gif|swf|xml|txt)$ {
        expires 14d;
    }

    include /etc/nginx/templates/php-catchall.tmpl;
    include /etc/nginx/templates/redirect_to_https.tmpl;
    include /etc/nginx/templates/misc.tmpl;
}

/etc/nginx/sites-enabled/example.com_443 (web-mail):

server {
    listen 443;
    server_name mail.example.com;
    ssl on;
    ssl_certificate /etc/ssl/certs/iRedMail.crt;
    ssl_certificate_key /etc/ssl/private/iRedMail.key;
    ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
    ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-AES256-GCM-SHA384:DHE-R
    ssl_prefer_server_ciphers on;
    ssl_dhparam /etc/ssl/dh2048_param.pem;

    index index.php index.html;

location / {
    root /opt/www/roundcubemail;
}

 # Web applications.
include /etc/nginx/templates/roundcube.tmpl;
include /etc/nginx/templates/iredadmin.tmpl;
include /etc/nginx/templates/php-catchall.tmpl;
include /etc/nginx/templates/misc.tmpl;

}

CF Rules:

https://example.com/mail SSL:Flexible - Full

When enabling CF protection of example.com (DNS A-record) mail.example.com falls into a redirect loop.

Someone · Answer 1 · 2016-10-18T18:22:26.067

0

Problem was in DNS-records on cloudflare service. It was something like:

...
example.com. 300 IN A 1.2.3.4
www          300 IN A 1.2.3.4
mail         300 IN A 1.2.3.4
...

Changed A-records to CNAME like this:

...
example.com.      300 IN A 1.2.3.4
www.example.com.  300 IN CNAME example.com.
mail.example.com. 300 IN CNAME example.com.
...

did the thing.

edited Oct 18 '16 at 18:22

answered Oct 17 '16 at 09:50

Someone

169

Harry Traynor · Answer 2 · 2017-04-18T20:59:21.690

You are able to direct everything in CF's DNS to an IP address without a problem, you just need to disable it going through the cache - as CF does not accept any other protocol other than HTTP and HTTPS. so you are able to PR these back to A records and just disable the little orange cloud next the the entry.

Hope this helps.

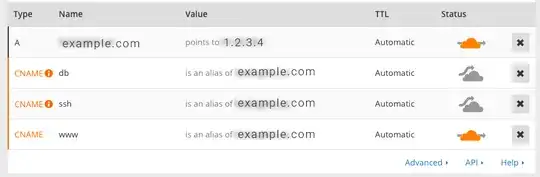

Here is an example of how DNS can be setup. Point everything you want going through CF caches with the orange cloud enabled, and everything you don't without it enabled. This allows A records to bypass it completely as explained above. I have shown it with aliases for the sake of administrative ease, but if you do a DNS lookup you get the exact same thing.
