What is the wiring for a patch cable?

Question

What is the wiring order for an 10/100/n-Base-T patch cable? What about a crossover (x-over) cable?

score 25 · Accepted Answer · edited Feb 19 '12 at 13:51

25

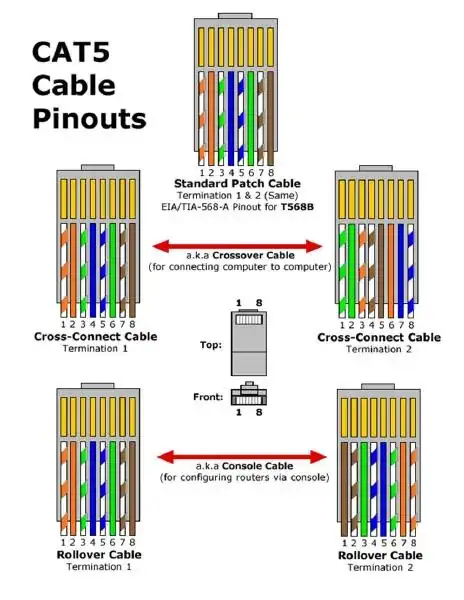

enter image description here

Doing a google image search for "cat5 pinouts" has plenty of others as well

edited Feb 19 '12 at 13:51

Bart De Vos

answered Apr 30 '09 at 14:44

Vagnerr

score 2 · Answer 2 · answered Apr 30 '09 at 14:45

2

There is a great guide right here

answered Apr 30 '09 at 14:45

stimms

score 0 · Answer 3 · answered Apr 30 '09 at 14:46

0

This is really one where google just has the answers http://www.google.com/search?q=wire+network+cable A patch cable is just a straight through cable

answered Apr 30 '09 at 14:46

trent
