I'm developing various websites and functionality to cater to various different use-cases up in Django.
Is there a good notation for showing what behaviour is at each stage, e.g., swimlanes.
I use BPMN 2 notation for everything, but feel that I am overusing this, and probably abusing the notation :P

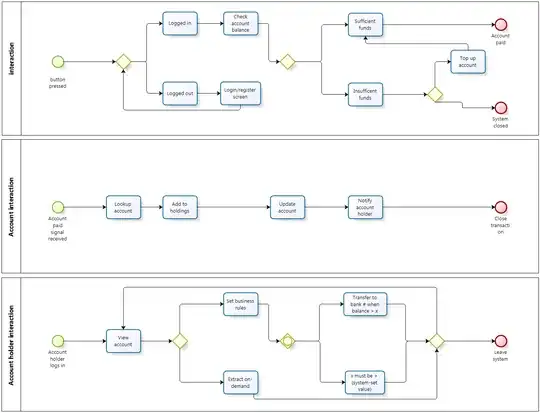

Example:
Please recommend a suitable notation for showing the interactions between model, view and controller, as well as some of the inner business-logic in each stage.
Your diagrams look clean and accurate. A good diagram type for
for showing the interactions between model, view and controller
would be a uml sequence diagram. For your
inner business-logic in each stage
i recommend uml statechart diagrams.
Are you generating code from them or is it just a documentation? If you just document it feels like overuse, cause you have to update always the code and the diagrams. I would only use it where the code is to complex (if this isn't a smell and any better design exists).
But if you cultivate these diagrams for customers, then they are great (if your customers understand them ;) )!
