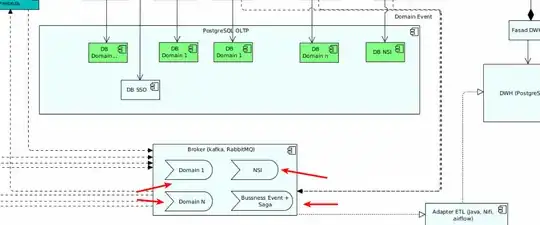

What does it mean this fish object on the architecture diagram?

enter image description here

J.J. Beam
  • 461

1 Answers1

1

On an ArchiMate 3.1 diagram, those symbols are "Application Events". Application events represent changes in application state. You can find more information in the ArchiMate 3.1 specification, specifically in Chapter 9 Application Layer.
