I read this in TCP/IP PROTOCOL SUITE second edition, written by Behrouz A. Forouzan and Sophia Chung Fegan.
In traditional Ethernet, the minimum frame length is 520 bits, the transmission rate is 10 Mbps, the propagation speed is almost the speed of light, and the collision domain is almost 2500 meters.
So what is transmission rate and propagation speed? Why they are not the same?
imagine you have a drum. If you beat it 10 times a second that would give you the transmission rate. You can hear it from a hundred meters away in about a second (speed of sound) which is the propogation speed.
Edit: 10 times a second being 10 bits of information send. You can beat faster, increasing the transmission rate, but you can't increase the speed of sound (propogation speed).
Propagation speed is the amount of time it takes for one particular signal to get from one point to another.
Transmission Rate is the total amount of data that can be sent from one place to another in a given period of time.
Consider two possibilities at (or close to) opposite extremes:
A 300 baud modem. Propagation speed is close to the speed of light, but transmission rate is only 300 bits per second (~30 characters per second). If, for example, you're talking to a machine 3000 miles away, transmitting a single character is close to instant, but transmitting a lot of them takes a long time (e.g., one megabyte would take close to 10 hours). Propagation speed = ~C, Transmission rate = ~100 KB/hour.
A van/small truck full of hard drives. Let's assume our vehicle can hold 1000 hard drives. Its propagation speed is (roughly) the speed limit from a source to a destination -- let's assume 60 MPH average. To figure the transmission rate, let's assume each hard drive holds 2 terabytes, for a total of 2000 Terabytes. Propagation speed = ~60 MPH, transmission rate = ~40 terabytes/hour.
Here's an analogy from Computer Networking: A Top-Down Approach (6th ed.), written by James F. Kurose and Keith W. Ross, found on page 38:

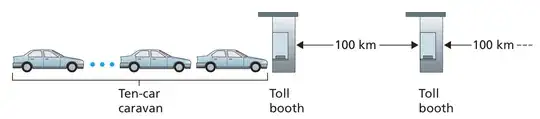

Consider a highway that has a tollbooth every 100 kilometers. You can think of the highway segments between tollbooths as links and the toll- booths as routers. Suppose that cars travel (that is, propagate) on the highway at a rate of 100 km/hour (that is, when a car leaves a tollbooth, it instantaneously acceleratesrates to 100 km/hour and maintains that speed between tollbooths). Suppose next that 10 cars, traveling together as a caravan, follow each other in a fixed order. You can think of each car as a bit and the caravan as a packet. Also suppose that each tollbooth services (that is, transmits) a car at a rate of one car per 12 seconds, and that it is late at night so that the caravan’s cars are the only cars on the highway. Finally, suppose that whenever the first car of the caravan arrives at a tollbooth, it waits at the entrance until the other nine cars have arrived and lined up behind it. (Thus the entire caravan must be stored at the tollbooth before it can begin to be forwarded.) The time required for the tollbooth to push the entire caravan onto the highway is (10 cars)/(5 cars/minute) = 2 minutes. This time is analogous to the transmission delay in a router. The time required for a car to travel from the exit of one tollbooth to the next tollbooth is 100 km/(100 km/hour) = 1 hour. This time is analogous to propagation delay. Therefore, the time from when the caravan is stored in front of a tollbooth until the caravan is stored in front of the next tollbooth is the sum of transmission delay and propagation delay—in this example, 62 minutes.
The minimum Ethernet frame size is actually 64 octets or 512 bits. The size of the collision domain is bounded by the transmission time of a 512 bit frame. Each bit in a 10Mbps Ethernet frame takes 0.1 microseconds to transmit; therefore, a 512-bit 10Mbps Ethernet frame takes 51.2 microseconds to send. If you dig deeper into the spec, you will find that the size of the collision domain is bounded by the distance that can be traversed, round-trip, in 51.2 microseconds.
