I am trying to build flexible, visual tool to calculate flow distribution through the piping network (mobile hydraulics).

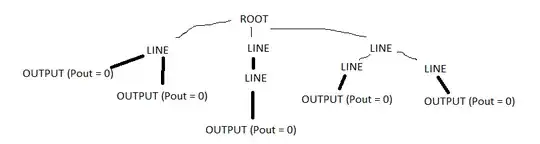

I have root node of the network which has defined flow and pressure inputs. Each node (of course including root one) can have multiple children - lines, connectors or outputs. Each branch ends up with outlet to atmospheric pressure. This is how the example network could look like

So far I know that I have to calculate losses at each node going from the bottom of the tree, but losses are flow dependent... When I would have losses at each node, I could somehow (how?) calculate flow distribution going from the root node I would get flow to each child, then for each child flow to each of its children etc. Not sure if it helps, but I know the target flow for each output.

The main issue is probably the fact that there is no particular example as it suppose to be generic tool.

Any help?

I though it is pretty simple (I still believe it is) but I got stuck and cannot find the way out.

Mark
  • 5,333
  • 16
  • 47
Marek Urbanowicz
  • 141
  • 3

1 Answers1

1

Please refer to EPANET from https://www.epa.gov/water-research/epanet It is a open source software for solving flow networks.

Hope this helps. Thanking you
