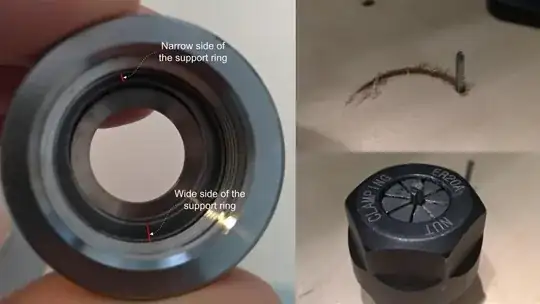

Could you clarify my suspicions. My spindle (HY HUANYANG, model: GDZ-80-2.2A) has come with a collet nut which has bizarre asymmetrical form of the supporting ring inside it (the ring for collet groove). Since I have obscure issue why all my end mills break with my CNC whereas they cut successfully with the same milling parameters on another CNC, I suspect the problem could lie here. Please take a look at the attached images I have taken for you and guide me please do I have to replace my collet nut or it's totally normal ring asymmetry?
Asked
Active
Viewed 25 times
2
Vitalii Sadovshikov
- 121
- 1
1 Answers
3
This Old Tony of YouTube fame had a video recently describing the tribulations of a three dollar collet. He discovered that the inexpensive unit had excessive run-out, resulting in snapped bits. This sounds very similar to your situation.
Consider to place a tool in the collet and insert into your mill. Place a dial indicator against the shaft of the tool and observe the run-out. Anything over a thousandth of an inch is going to be suspect.
Perform the same test with a known good collet nut and compare the difference. I think you'll discover that you have the answer in hand.
fred_dot_u
- 7,467
- 1
- 11
- 17
