Could someone please explain me why the velocity of point P and P' aren't the same? Appearently it is because the angular velocity of point A and B aren't the same.

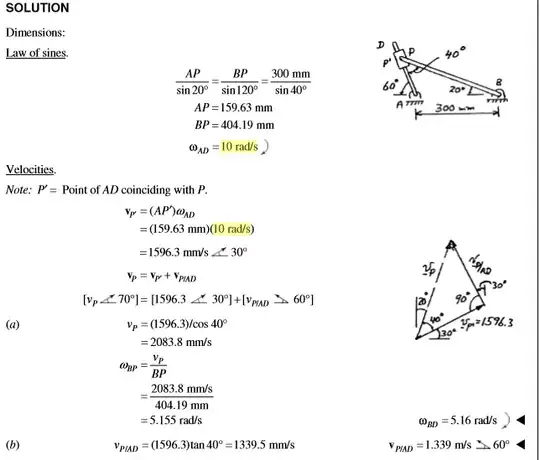

enter image description here

We are only given that the angular velocity of A is 10rad/s clockwise.

Why? I would think that, as these two elements are connected , they would all rotate with the same angular velocity. If A rotates with a speed of 10rad/s it would be logical for me that point B just follows and rotates with the same angular velocity.

privetDruzia
  • 217
  • 1
  • 6

1 Answers1

3

The velocity of P' is perpendicular to AD, and the velocity of P is perpendicular to BP. So clearly the directions are not the same. Thus there is relative velocity between P and P' as shown in the diagram. Now, if gyroscopes are mounted at D, P', or any point on AD, except A, they will all measure the same angular velocity. A gyroscope mounted at P will measure the same value as one mounted anywhere between B and P, excluding B.

Suba Thomas
  • 2,036
  • 11
  • 15
